ML100W-BK-DRIVER
The Magnetix Collection is a seamless, built-in track system designed to integrate effortlessly into walls or ceilings. Its magnetic design allows lighting components to be placed anywhere along the track, offering flexible, modern illumination that adapts to your space.
Options:

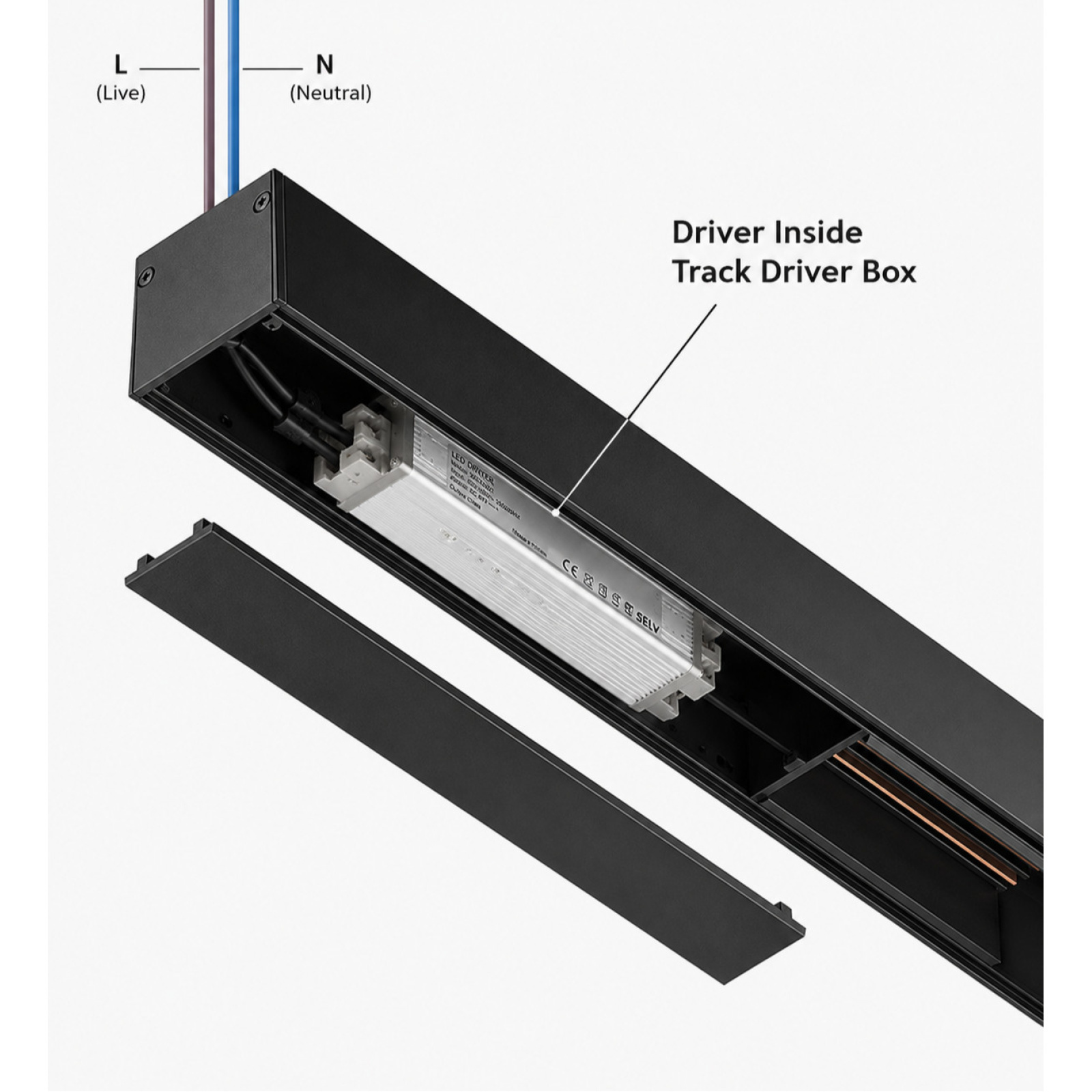

The LED driver must remain accessible for future maintenance or replacement.
Dimmable LED Driver (5 in 1 Dimming)
Triac/Phase, 1-10v, Potentionmeter
10V PWM 5 in 1 dimming
Constant Voltage
Input: 100-277V-1.5A max.
50/60Hz
Output: 24V - 4.17A
1-10V
The LED driver is controlled by an external signal between 1 and 10V. Perfectly dimmable in a range from 10% to 100%. Applicable with many home automation systems. It is necessary to place a 1-10V actuator between the home automation system and the fixture. Two extra control wires are needed to connect 1-10V.
Measurements:
18" Long
2.5" Wide
1" Deep
2 pounds
Dimmable LED Driver (5 in 1 Dimming)
Triac/Phase, 1-10v, Potentionmeter
10V PWM 5 in 1 dimming
Constant Voltage
Input: 100-277V-1.5A max.
50/60Hz
Output: 24V - 4.17A
1-10V
The LED driver is controlled by an external signal between 1 and 10V. Perfectly dimmable in a range from 10% to 100%. Applicable with many home automation systems. It is necessary to place a 1-10V actuator between the home automation system and the fixture. Two extra control wires are needed to connect 1-10V.
Measurements:
18" Long
2.5" Wide
1" Deep
2 pounds
| Product Category | Track |
| Product Description | Magnetix Surface Mount Power Supply 100-Watts Max |
| Collection Name | Magnetix |
| Finish | Black |
| Length-Ext. | 18 in. |
| Width | 18 in. |
| Height | 3 in. |
| Maximum Height | N/A in. |
| Weight | 1 lbs |
| Wall scone front to back | N/A in. |
| Voltage | N/A |
| Lumens | N/A |
| Kelvins Led | N/A |
| CRI Led | N/A |
| Average Hours LED | 50000 |
| Listing | ETL |
| Light Source | BULB |
| Bulb Quantity | N/A |
| Bulb Wattage | 100 |
| Bulb Base Type | N/A |
| Bulb Shape | N/A |
| Bulb Included | N/A |
| Dimmable | Yes |
| Sloped Install | Yes |
| Number of Boxes | 1 |
| Warranty | 1 Year Limited Electrical Warranty |
| Fixture Shape - Chandelier | N/A |
| Fixture Shape - Flushmount / Semi Flush | N/A |
| Fixture Shape - Wall Sconce | N/A |
| Style | Track |
| Shade Material | N/A |
| Shade Color | N/A |
| Mounting Location | Damp |
| Prop 65 | Yes |
| Prop 65 Warning Label | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects. For more information go to www.P65Warnings.ca.gov. |
| Prop 65 Chemical | Yes |
| Title 24 | Yes |
| Title 20 | Yes |
| Designer | Avenue Lighting |
| Cleaning Instrucitons | Wipe with slightly damp cloth |
| Materials | Aluminum , Iron |
| Assembly | Some Assembly Required |
| UPC | 659657369550 |
